Product Parameters:

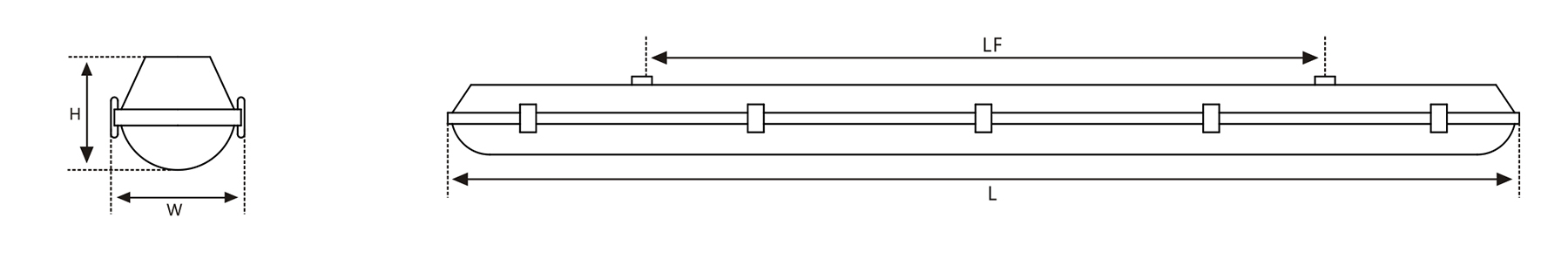

Model | Max.watt | Lampholder | Dimension LxWxH | LF | IP Raing | Clip Qty |
J5118D | 1x18W | G13 | 660x88x90mm | 310mm | IP65 | 6 |
J5136D | 1x36W | G13 | 1260x88x90mm | 895mm | IP65 | 8 |
J5158D | 1x58W | G13 | 1560x88x90mm | 995mm | IP65 | 10 |
J5218D | 2x18W | G13 | 660x125x90mm | 310mm | IP65 | 6 |
J5236D | 2x36W | G13 | 1260x125x90mm | 895mm | IP65 | 8 |
J5258D | 2x58W | G13 | 1560x125x90mm | 995mm | IP65 | 10 |
Product Features:

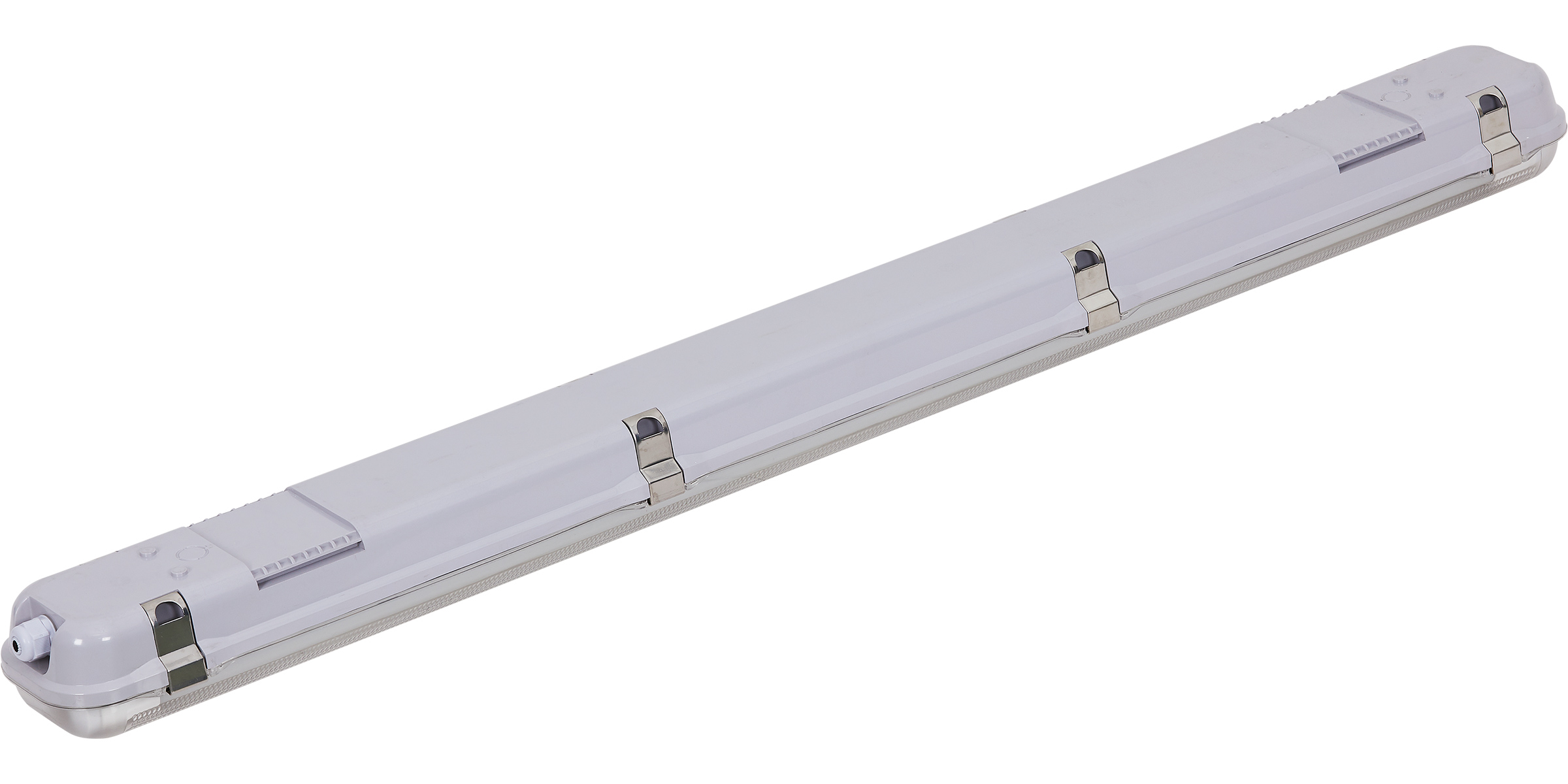

★ Natural silicon gel gasket used in the housing PC clips or S/S clips for locking and waterproof cable gland on side of the housing to ensure good waterproof function.
★ Many types combinations between housing (PC/ABS) and diffuser (PC/PS) to meet different requests.
★ Easy and quick to installation under ceiling or on surface.
Application:
Workshop, warehouse, cold store, parking-lot, food industry,tunnel, bathroom etc.
