Cixi JingYu Lighting & Electrical Equipment Co., Ltd.

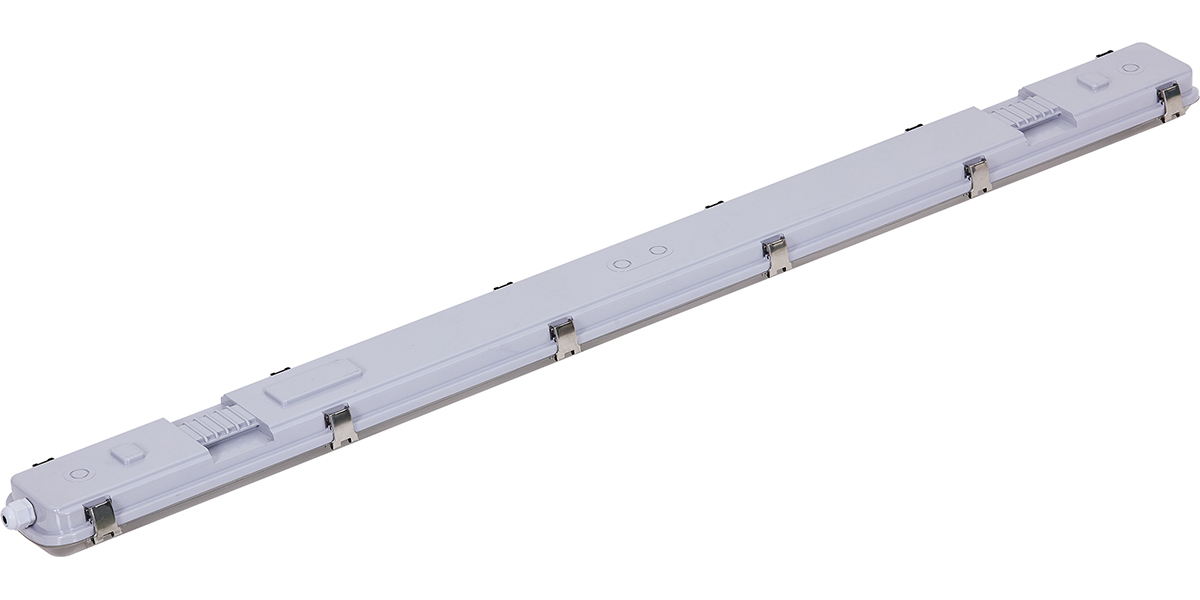

IP65 T5-T8 Tri-proof light BFT

Product Parameters:

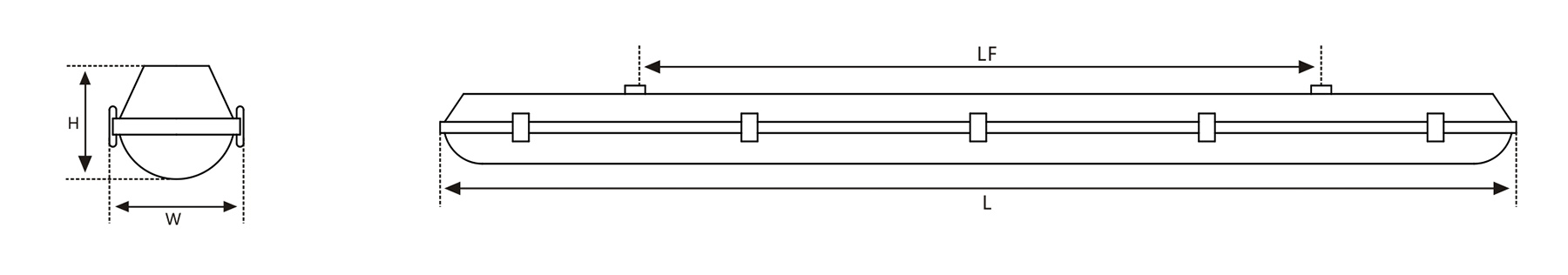

Model Suitable Lamp Lampholder Dimension LxWxH LF IP Raing Clip Qty
J5118BFT T8 LED tube(1x9W) G13 675x70x61mm 323mm IP65 8
J5136BFT T8 LED tube(1x18W) G13 1285x70x61mm 890mm IP65 12
J5158BFT T8 LED tube(1x24W) G13 1585x70x61mm 1085mm IP65 14
J5218BFT T8 LED tube(2x9W) G13 675x105x61mm 323mm IP65 8
J5236BFT T8 LED tube(2x18W) G13 1285x105x61mm 890mm IP65 12
J5258BFT T8 LED tube(2x24W) G13 1585x105x61mm 1085mm IP65 14

Product Features:

★ Natural silicon gel gasket used in the housing PC clips or S/S clips for locking and waterproof cable gland on side of the housing to ensure good waterproof function.

★ Many types combinations between housing (PC/ABS) and diffuser (PC/PS) to meet different requests.

★ Easy and quick to installation under ceiling or on surface.


Workshop, warehouse, cold store, parking-lot, food industry,tunnel, bathroom etc.
